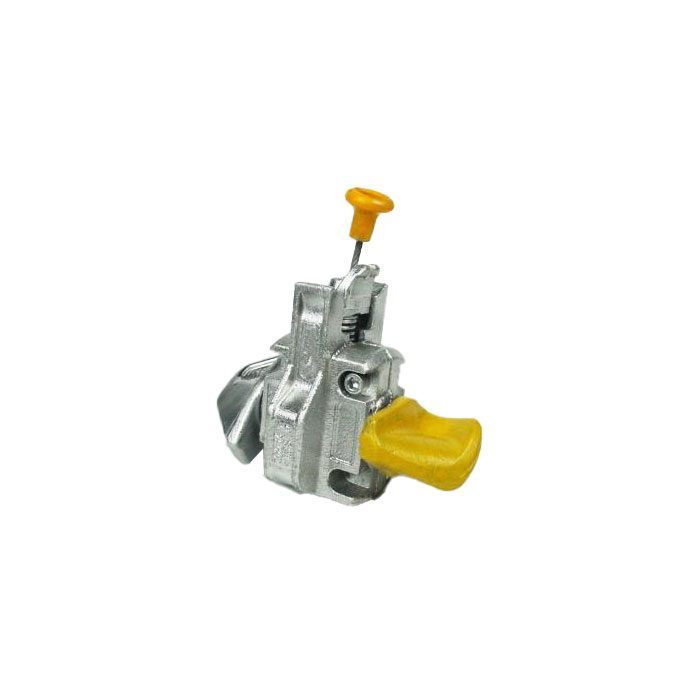

Semi-automatic twistlock

Semi-automatic twistlock…

Specifications: Semi-automatic twistlock

Material:
- 1) 1x Cone with spring: assembly part
- 2) 1x Left housing: SCW480, casting
- 3) 1x Right housing: SCW480, casting
- 4) 2x M10 Bolt: M10x45, 8.8, DIN 912
- 5) 2x Nut: M10, 8, DIN 985
- 6) 1x Handle: L=166
- 7) 1x Spring: 304H, Ø 26 x 52.6 (Ø3)
- 8) 1x Guide block: ZG35 / ZG45, casting
Finish:
hot dip galvanized, painted
Packing:
as per customer request

Datasheet coming soon
